Should framed themes also suppress inner facet axes?

[grantmcdermott]

EDIT: dropped the ggplot-specific angle and rather focus on framed themes in general.

Follow-up to #673.

Our new facet.axes = "outer" logic extends to non-framed themes (e.g., "clean2") out of the gate, as well as some "semi-framed" themes like "classic" and "socviz" (which have L-shaped frames). This essentially follows the same pattern/logic that we have had for ages: namely that faceted plots suppress their inner axes if they are drawn without a plot frame (box). If the same plot is drawn with a theme that uses a plot frame (e.g., "clean"), then we don't suppress the inner axes.

However, our new facet.axes = "outer" machinery makes it easier to extend axes suppression to frame plots too. As a result, I'm tempted to implement this same facet.axes = "outer" logic to framed themes like "clean" & co. Note that this would be a breaking aesthetic change from existing behaviour.

To illustrate, compare the "clean2" (no frame) and "clean" (framed) in this example:

library(tinyplot)

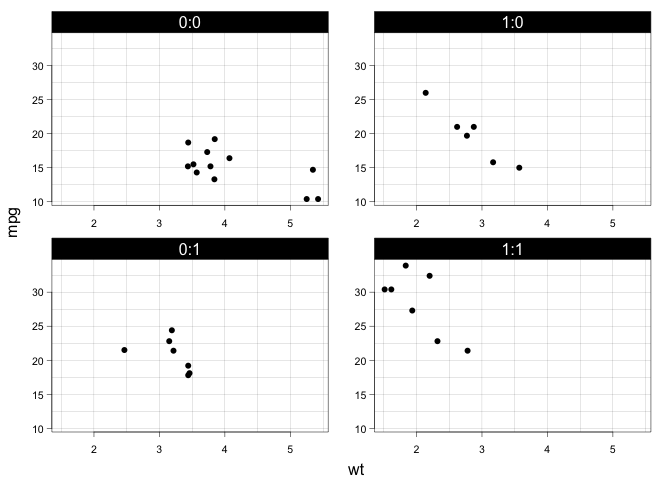

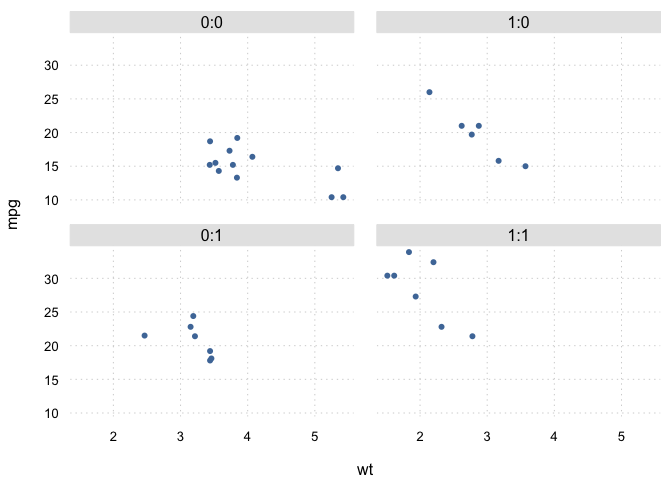

plt(mpg ~ wt, mtcars, facet = ~am:vs, theme = "clean2")

plt(mpg ~ wt, mtcars, facet = ~am:vs, theme = "clean")

Again, our new facet.axes machinery makes it easy to override this behaviour:

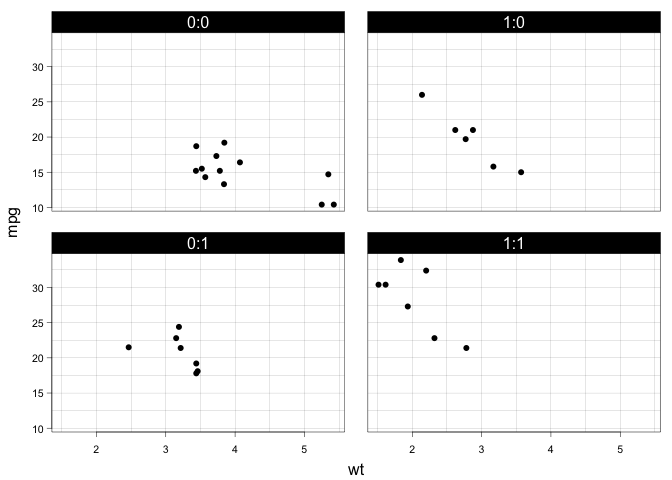

plt(mpg ~ wt, mtcars, facet = ~am:vs, theme = list("clean", facet.axes = "outer"))

The question is: should this be the default for framed themes too?

P.S. Another example, comparing the behaviour of our ggplot2-insired "linedraw" theme against the original:
To illustrate, consider this "linedraw" example:

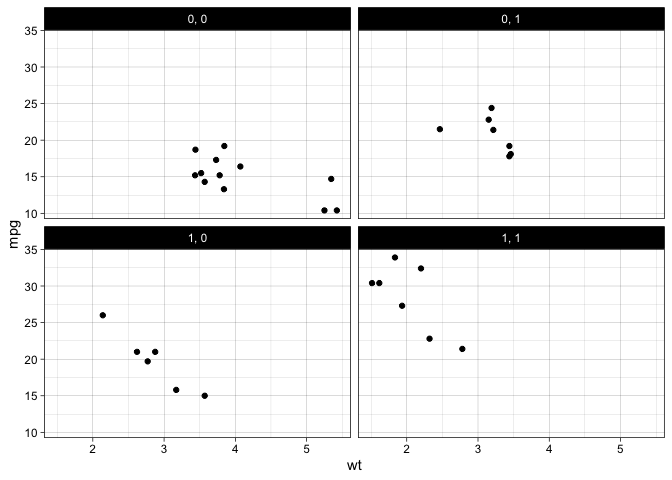

library(ggplot2)
ggplot(mtcars, aes(wt, mpg)) +
  geom_point() +
  facet_wrap(vars(am, vs), labeller = labeller(.multi_line = FALSE)) +
  theme_linedraw()

As you can see, ggplot2 suppresses the inner axes for the top-right and bottom-right facets.

In contrast, we show all axes by default.

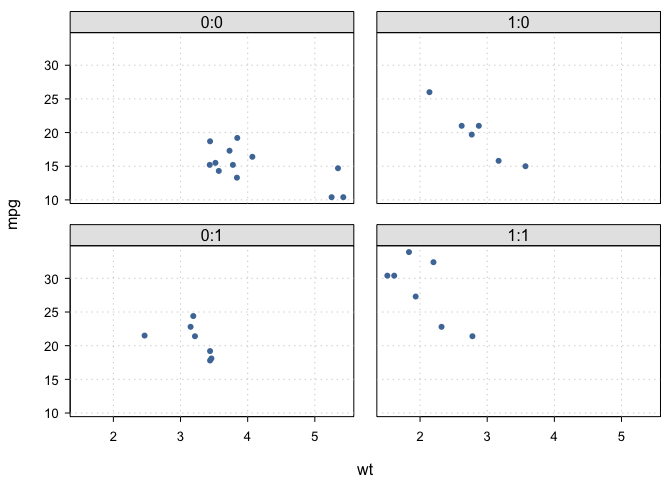

plt(mpg ~ wt, mtcars, facet = ~am:vs, theme = "linedraw")

Versus the override version (which should be the default)?

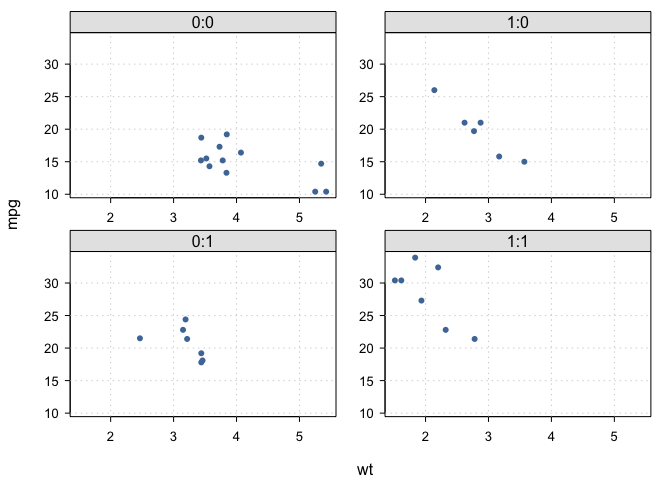

plt(mpg ~ wt, mtcars, facet = ~am:vs, theme = list("linedraw", facet.axes = "outer"))

Would appreciate others thoughts. (cc @vincentarelbundock @zeileis @strengejacke)

[vincentarelbundock]

For me, consistency is not that big a deal. We do themes "inspired by" and are allowed to take liberties.

But in this case I do like suppressions, so preference and consistency align :)

[grantmcdermott]

Ha, nice! To clarify, would you also prefer suppression for some of our other framed themes like "clean"? It would be a breaking change, but maybe it's worth the pain?

[vincentarelbundock]

Yes, I think so. If they are aligned the info is redundant.

[grantmcdermott]

Thanks @vincentarelbundock. Updated the title and OP text to make this more general; not just limited to ggplot2-inspired themes.

At any rate, I think I agree with you and am leaning towards making this ("breaking" aesthetic) change.

Let's see what others say.

[zeileis]

I agree with Vincent. If the axes are aligned, it is sufficient to show the outer labels by default.
