Tech-Expo is a full-stack CRM application built as a modular monolith, showcasing scalable backend architecture, secure design, and production-ready practices.

---

Table of Contents

• Overview
• Features
• Tech Stack
• Architecture
  • Infrastructure
  • Database
  • Observability
  • Directory Structure
• Setup and Usage
  • Production Emulation
    • Quickstart
  • Development
• Live Demo
• Future Features
• License
• Acknowledgements

---

Overview

Tech-Expo is a full-stack CRM-style application showcasing secure microservice architecture, modern DevOps practices, and production-grade observability.

I built this project to simulate how modern businesses manage and present customer data at scale, while serving as a capstone project to highlight enterprise-level engineering skills, technical ability, and attention to detail in managing a complex polished mono-repo.

It includes core CRM capabilities like customer management, secure authentication, real-time dashboard, while demonstrating modern DevOps and observability practices such as TLS certification, encrypted credential protocol, pre-commit scans, and more.

🎥 Watch Project Overview Video [30s]

Features

Frontend

• Framework: React, with Redux, React-Router, React-Hook-Form
• UI: drag-drop Kanban board, calendar, filter-sort-paginate TanStack tables, quote PDF, user comment system, tool-tips
• UX: Responsive design, ARIA components and accessibility concern, sidebar and transition animations
• Auth: sign-up system, password strength check, persistent login (access/refresh token), TLS certification
• State: Redux, Apollo Client
• Optimization: code-splitting, lazy-loading, brotli compression, and Webpack build optimizations

Backend

• Framework: ExpressJS with GraphQL
• API: REST endpoints, GraphQL queries/mutations
• Verification: account verification, confirmation, and expiring token via nodemailer
• Authentication: password reset/update, JWT with secure cookies, access/refresh token system
• Authorization: role-based access, route protection, resource ownership rules
• Database integration: PostgreSQL, MongoDB, Redis
• Schemas: migration, development DB seeding, and type-safe ORM (Drizzle) schema design
• Error Handling: graceful termination, global error handling, logging with Pino, and production logging with Rollbar
• Security: secure Docker secrets and .env, audit trail, Argon2 password encryption, rate limiting, input validation and sanitization, helmet

Infrastructure & DevOps

• Dockerfile: custom brotli-enabled Nginx image, multi-stage and PNPM friendly layer caching
• Compose: multi-environment (dev, prod, swarm) multi-service orchestration
• Secrets: in-place secret encrypt/decrypt with Mozilla SOPS, scoped permissions/ownership of TLS keys
• Persistence: named database volumes, tmpfs for certification files (for dev)
• Scripting: processing permissions/ownership of TLS files (for dev), custom init/healthcheck, docker init helper
• Scalability: Docker swarm compliant
• Security: public-facing reverse Nginx proxy, secure internal networking, Wireguard VPN for metrics access
• Monitoring: scraping of expressjs and databases with Prometheus, core metrics dashboard in Grafana

Monitoring

• Prometheus: metrics exposed from expressJS service, postgreSQL, mongo, redis
• Grafana: unified dashboard with UP status overview, docker container metrics (cAdvisor), annotations, alerts
• Dashboard: dedicated rows for expressJS and each database; latency, query ops, memory use, requests/errors
• Alerts: Grafana email alerts for databases offline, high-rate 5xx server errors, redis max-memory
• Logging: Pino logger from expressJS to MongoDB, Rollbar real-time monitoring
• Health checks: docker service health checks for auto-restart resilience
• Security: dedicated Docker network for metrics, TLS protected, accessible through WireGuard VPN

Repo Management / Developer Experience

• PNPM Monorepo: centralized configuration store (/packages), repo and app targeted scripts
• Presentation: EditorConfig, Prettier, Eslint, Stylelint, and CommitLint conventions/styles alignment
• Git: CommitLint enforcing commit conventions, Husky running MegaLinter linting pre-commit
• Actions: github workflows for linting, testing, and dependency checks
• Testing: Vitest setup for unit/integration tests, Cypress for E2E
• Security: full SecretLint pre-commit check, MegaLinter local security scan
• Logging: dedicated logs folder for pre-commit megalinter report, eslint, stylelint, and secretlint scan reports
• Documentation: comprehensive well-structured README files

Tech Stack

Repository Management

Languages

Frontend

Backend

Infrastructure

Security

Testing

Tools

Development Environment

Architecture

Infrastructure

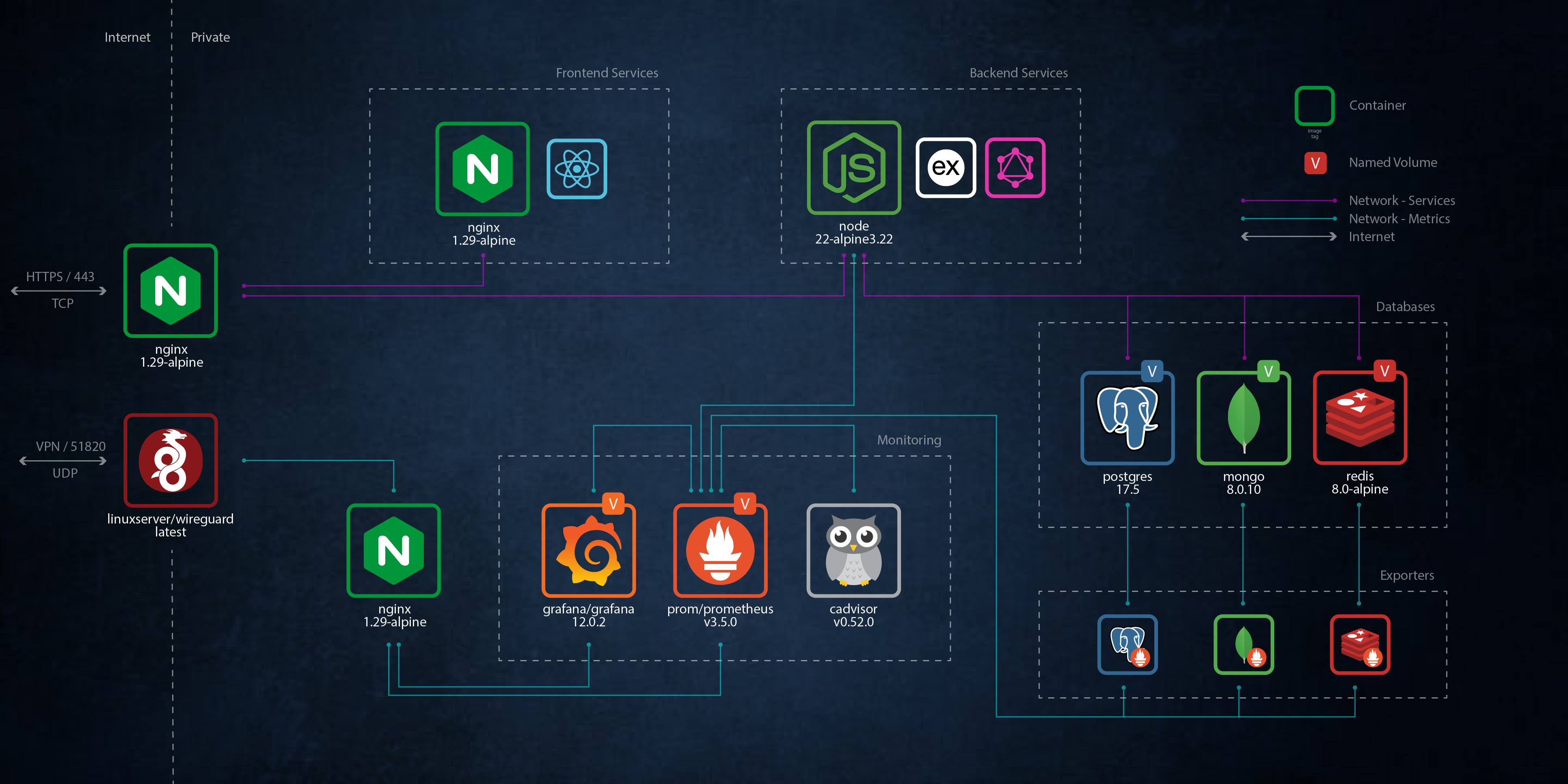

Infrastructure Diagram

Database Schema

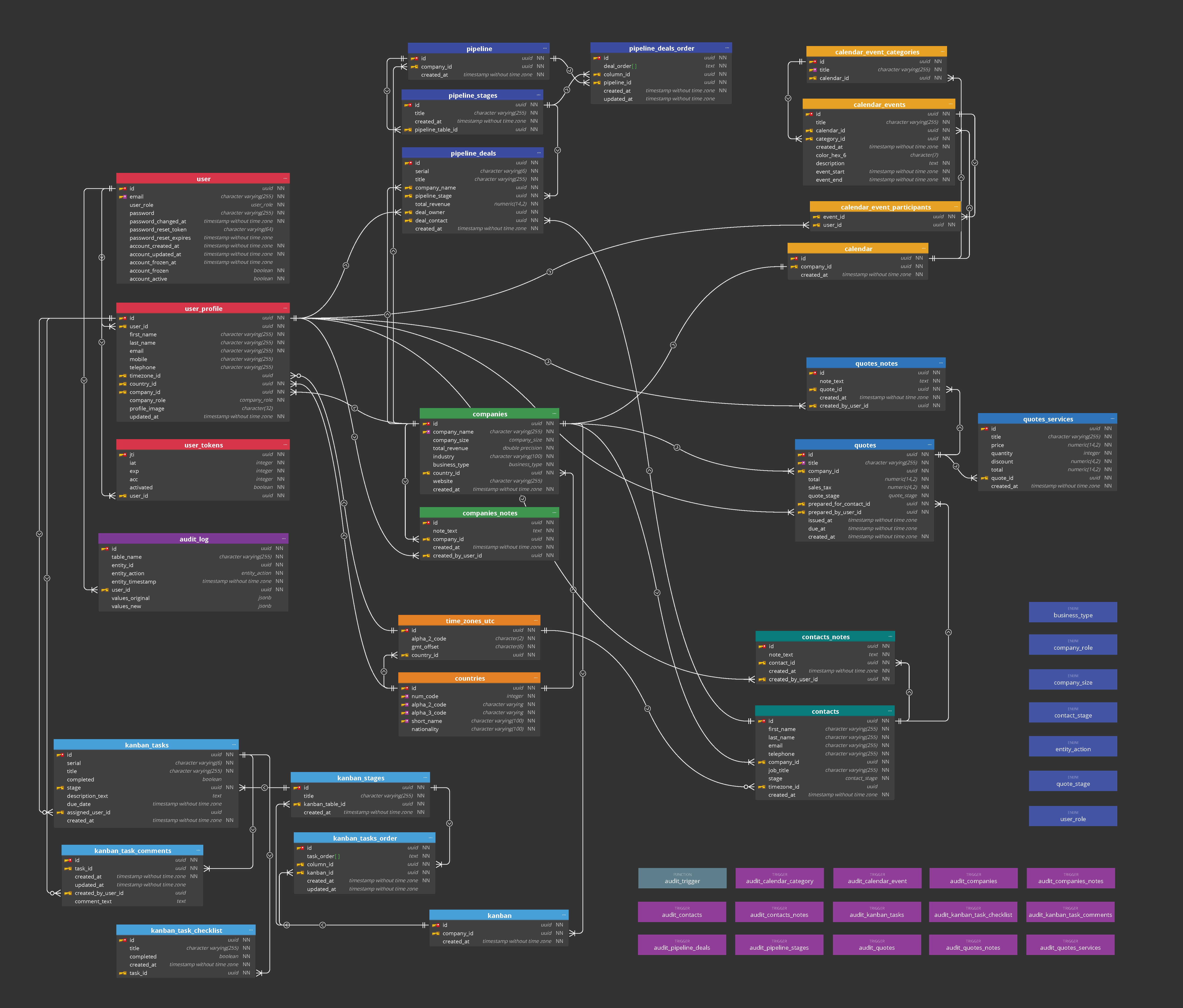

PostgreSQL

Interactive Diagram

Explore the components of the postgres architecture through this interactive schema diagram: Interactive Postgres Diagram

Static Diagram

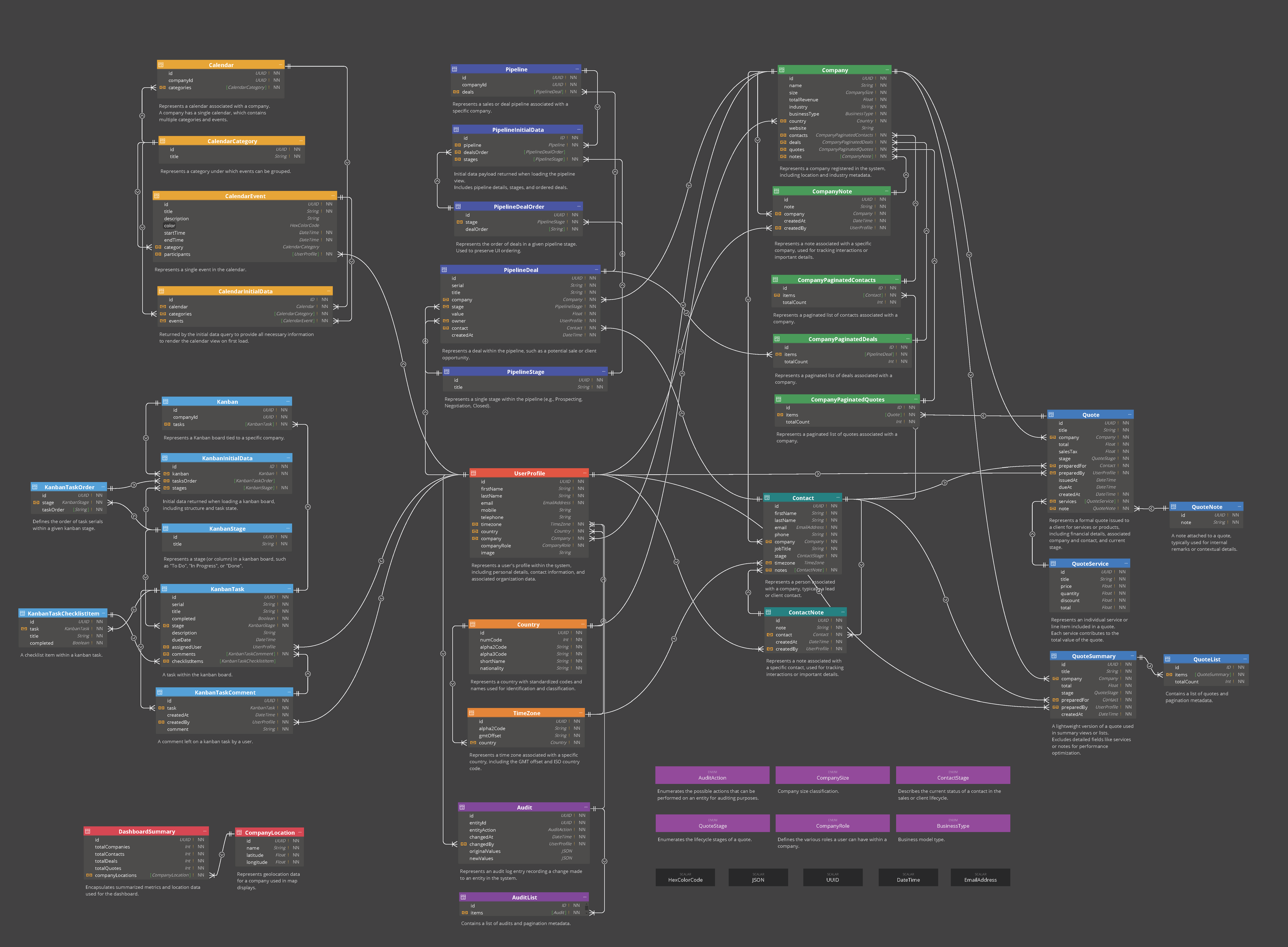

GraphQL

Interactive Diagram

Explore the components of the graphql architecture through this interactive schema diagram: Interactive GraphQL Diagram

Static Diagram

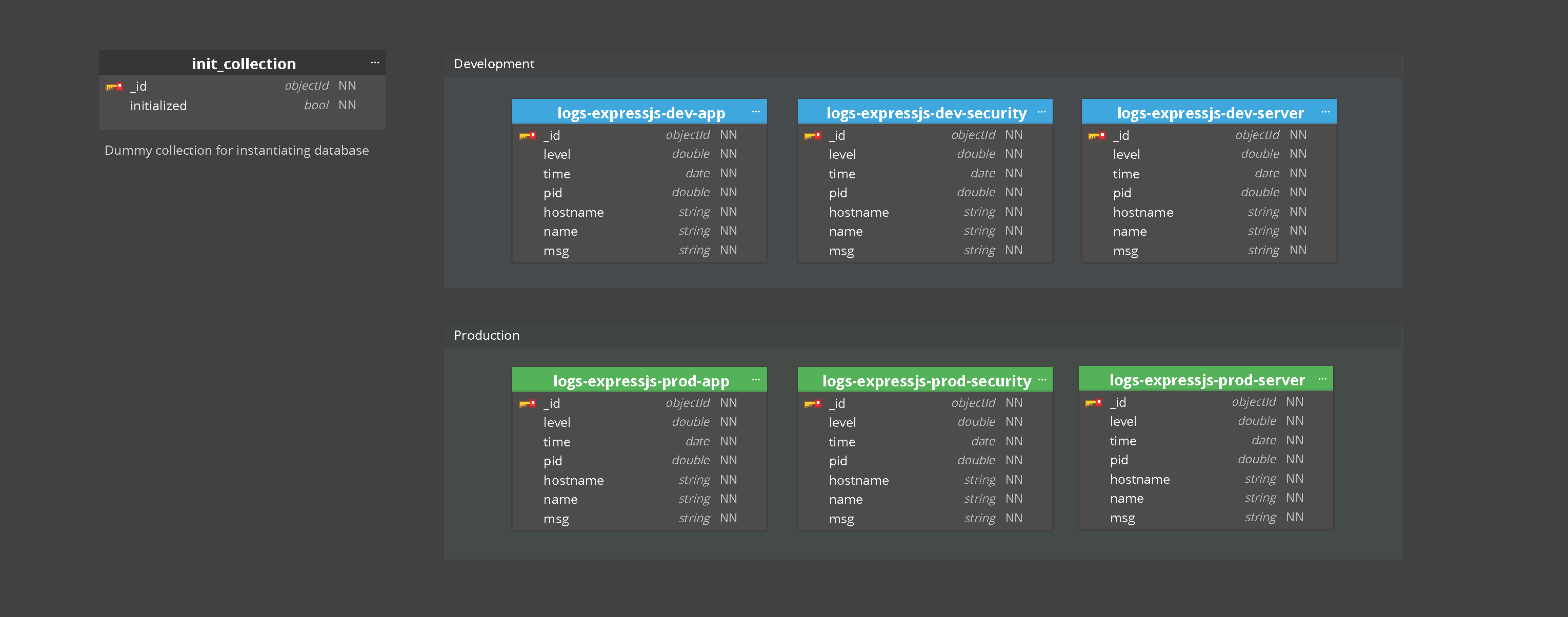

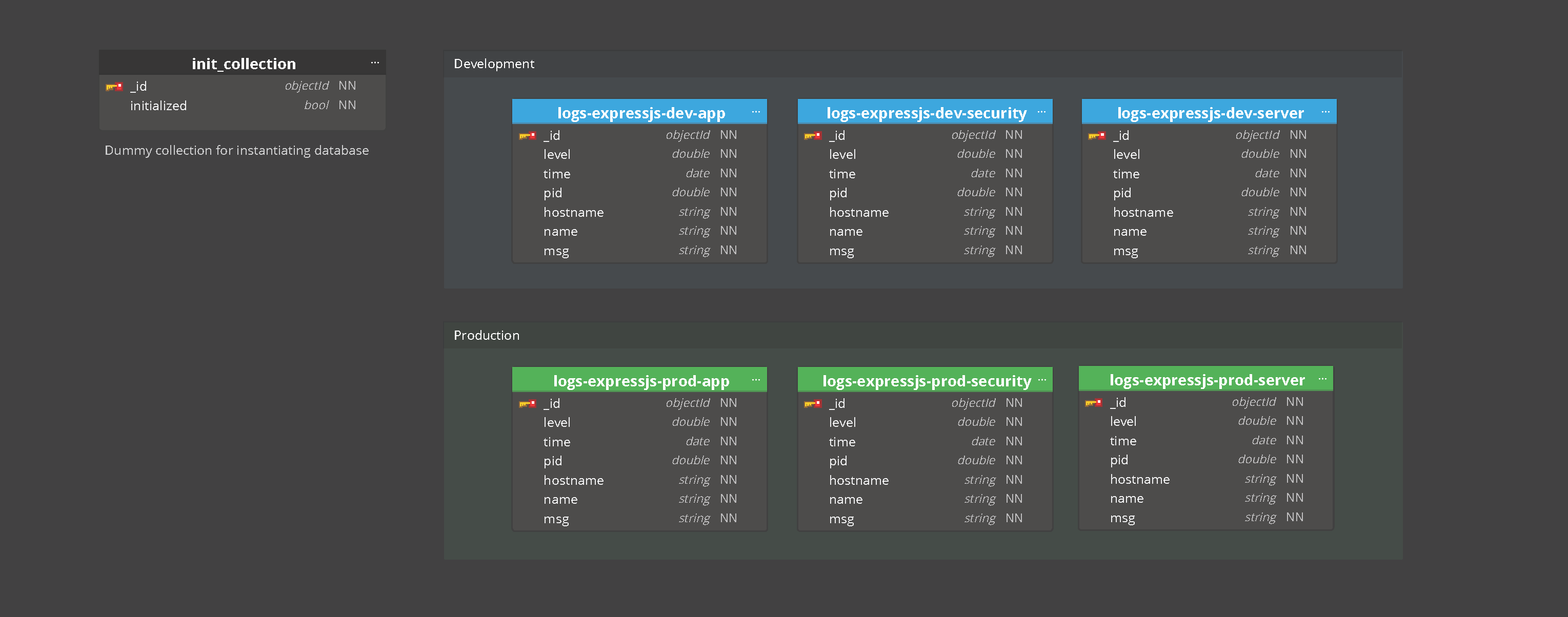

Mongo

Interactive Diagram

Explore the components of the mongo architecture through this interactive schema diagram: Interactive Mongo Diagram

Static Diagram

Observability

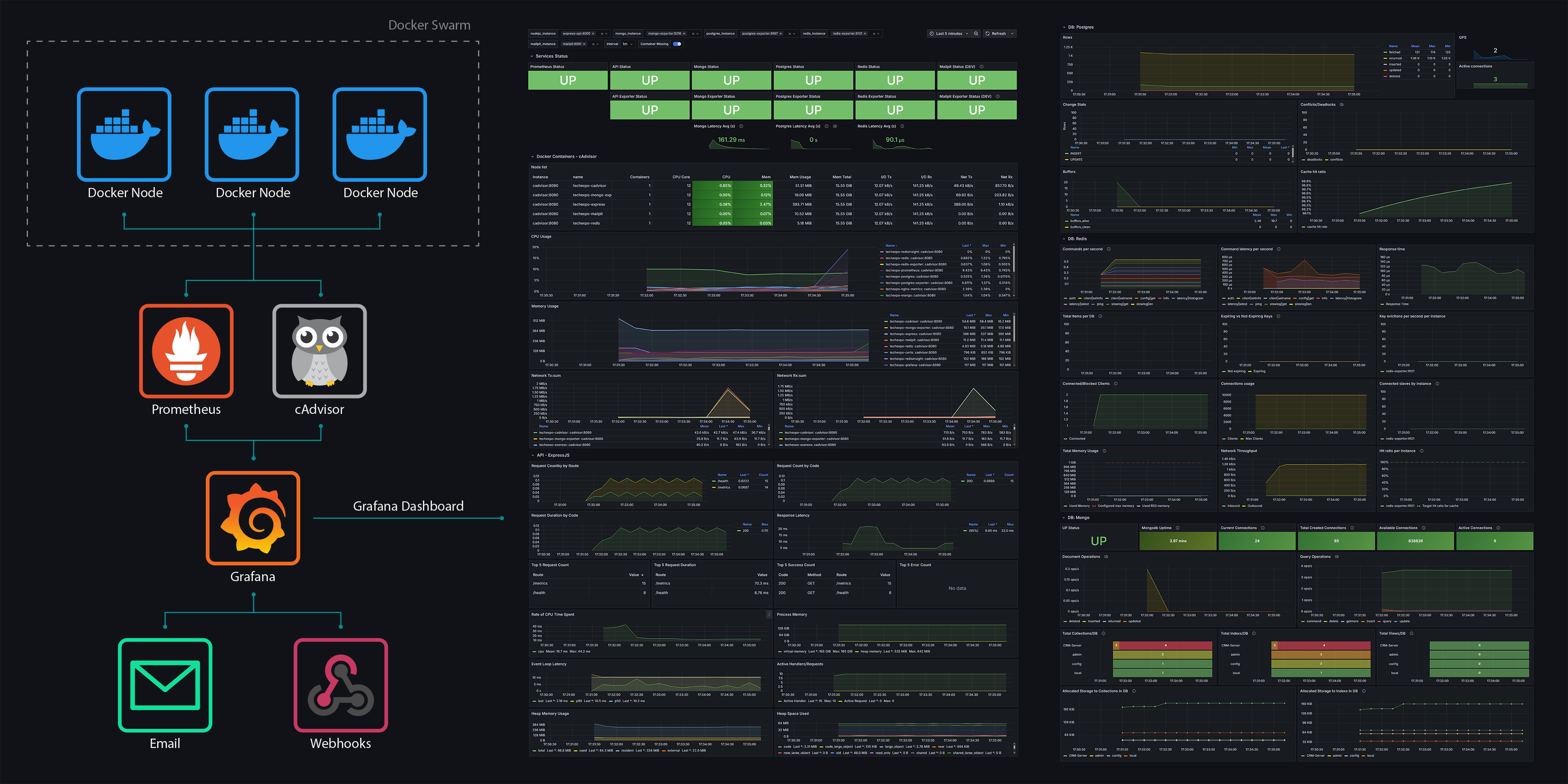

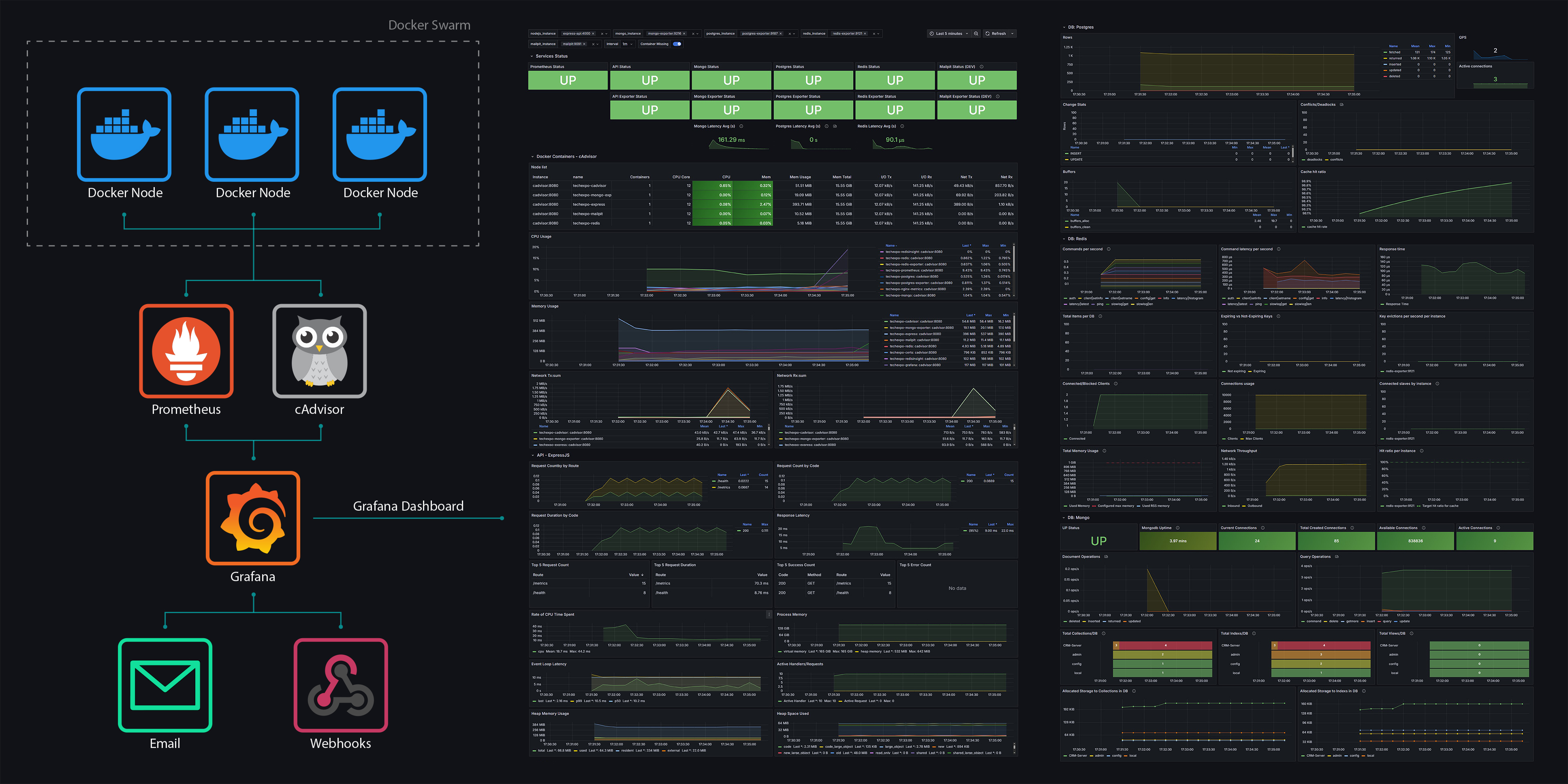

Metrics Collection

Directory Structure

./
├─ .github/                           # github workflows
├─ .husky/                            # commit workflows
├─ .vscode/                           # vscode settings
├─ apps/                              # mono-repo applications
│  └─ crm/
│     ├─ client/                      # service; React
│     ├─ server/                      # service; ExpressJS
│     ├─ docker/
│     │  ├─ certs/                    # TLS certification
│     │  ├─ grafana/                  # service; monitoring
│     │  └─ ...more services
│     └─ shared/                      # shared types
├─ logs/
├─ node_modules/
├─ packages/                          # mono-repo configurations
├─ scripts/                           # root package.json scripts
├─ package.json
├─ .mega-linter.lint.yaml             # pre-commit linting
├─ .mega-linter.security.yaml         # manual security scan
└─ ...configuration files

Setup and Usage

Production Emulation

The application is designed to run in a Docker Swarm environment. For local use, a production-like setup is provided via docker-compose.prod.yml, which does not require Docker Swarm.

For prerequisite certification files and detailed instructions, see the Docker README.md.

Quickstart

• Install prerequisite dependencies (see below): Docker Mozilla SOPS
• Download or Clone repository
• Run quickstart helper script;
  • generates required files: .env, .secret, TLS certification
  • output .secret.credentials unencrypted secrets reference for quick-access
  • automatically initializes docker-compose.prod.yml

git clone https://github.com/SStranks/tech-expo
cd tech-expo/apps/crm/docker
./quickstart.prod.sh

Docker

• Version: 28 or higher (Rootless recommended for security, but not strict requirement)
• Platform: Linux
• Installation: Docker

Mozilla SOPS

• Used for file encryption and secret management
• Required to run the supplied Docker setup as-is
• Alternative tools can be used, but Docker secret paths and initialization scripts (docker.sh) must be updated accordingly
• Installation: Mozilla SOPS

Development

PNPM

• Version: 10.26.0 as defined in package.json
• Install via:

curl -fsSL https://get.pnpm.io/install.sh | env PNPM_VERSION=<10.26.0> sh -

• For further information and alternative installation options: PNPM

Node

• Version: 22 as defined in package.json
• Recommended: Use NVM to manage multiple Node versions
• Installation: NVM and Node

Oxsecurity/Megalinter

• Version: 9
• Warning: Large image (11Gb)
• Used for pre-commit linting and security scans
• Installation: docker pull oxsecurity/megalinter:v9

Debugging

Please refer to the respective readme files for details on debugging configuration using VSCode:

Frontend README.md

Backend README.md

Docker README.md

For tool specific configuration refer to the respective readme sections:

DBeaver

Postman

Live Demo

Future Features

While this capstone demonstrates the foundation of an expo management system, I’ve identified several directions for future development. Some are geared toward expanding the product for a real-world use case, while others focus on engineering practices that reflect progression from junior to senior software engineer:

Future Features List

Interactive 3D Expo Map

• A landing page with a Three.js virtual expo hall where attendees can navigate booths and talks

Real-Time Attendee Features

• WebSocket-powered chat, Q&A, and live booth updates for collaborative engagement.

Ticketing & Payments:

• Stripe integration for ticket sales, booth reservations, and premium sessions.

Exhibitor & Sponsor Analytics:

• Dashboards for tracking booth visits, popular sessions, and attendee engagement.

Internationalization (i18n):

• Support for multiple languages, time zones, and currencies.

Infrastructure as Code:

• Terraform for reproducible cloud environments.

Event-Driven Microservices:

• Splitting monolith into services (e.g., payments, notifications, scheduling) to improve scalability.

Observability Enhancements:

• Expanding tracing and log aggregation with OpenTelemetry/ELK stack.

Mobile-Friendly PWA:

• Offline schedules, push notifications, and home-screen installation for attendees on the go.

License

Licensed under the MIT License – see LICENSE for details.
